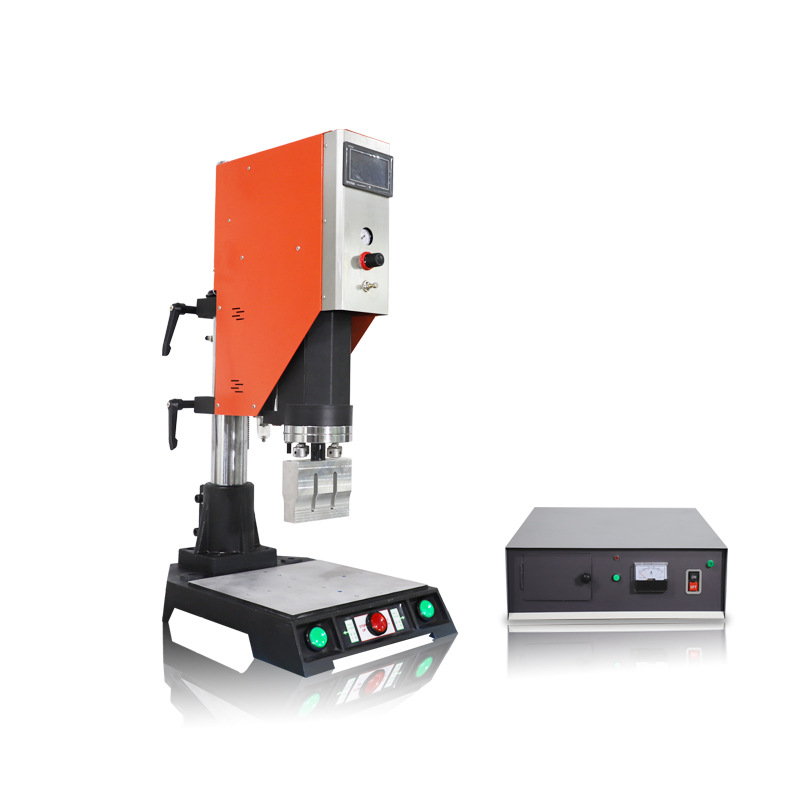

Ultrasonic Plastic Welding Machine Specification
Our ultrasonic plastic welding machine J series is specialized in welding in many different industries, such as automotive industry, electronics industry, medical devices, packaging industry, textile industry and son on. We can design and produce the customized ultrasonic horn based on your welding requirements.
| TYPE |
IN-2015J |
IN-2020J |
IN-1522J |
IN-1526J |
| Output Power |
1500W |
2000W |
2200W |
2600W |
| Frequency |
20KHz |
20KHz |
15KHz |
15KHz |
| Input Voltage |
220VAC |
220VAC |
220VAC |
220VAC |
| Head route of travel |
75mm |
75mm |
75mm |
75mm |
| Welding time |
0.01-9.99sec |
0.01-9.99sec |
0.01-9.99sec |
0.01-9.99sec |
| Air pressure |
0.1-0.7Mpa |
0.1-0.7Mpa |
0.1-0.7Mpa |
0.1-0.7Mpa |
| Cooling system |
Air Cooling |
Air Cooling |
Air Cooling |
Air Cooling |
| Welding Area(mm) |
&170 |
&190 |
&200 |
&220 |
| Dimension(mm) |
540*400*1050 |
540*400*1050 |
540*400*1050 |
540*400*1050 |
| 460*475*170 |
460*475*170 |
460*475*170 |
460*475*170 |
| Net Weight(KG) |
130kg |
90kg |
92kg |
95kg |
Feature
The features of our ultrasonic plastic welding machine J series make the welding performance is better than other types ultrasonic welders.
- Frequency and Power Options
- More Stable Output Performance
- Higher Welding Efficiency
- More Convenient Automatic Frequency Sweep Function
- Production Rhythm Can Be Up To 200 Times Per Minute
- Energy Saving Mode
- Digital Amplitude Set and Piecewise Control
Advantages
- Our ultrasonic welding machine utilizes NTK high-power transducers.
- The operating frequency is automatically displayed.
- The dial gauge displays scales with precise and quick adjustments.
- Digital control with accuracy up to one-thousandth of a second.
- The base can be adjusted for levelness, allowing for rapid set-up.
Our ultrasonic plastic welding machines are valued for their ability to create strong and precise bonds in thermoplastic materials, making them a versatile choice for a wide range of industries and applications. Please contact us
sales@intopindustrial.com to let us know what's your welding requirements and get a quotation.
