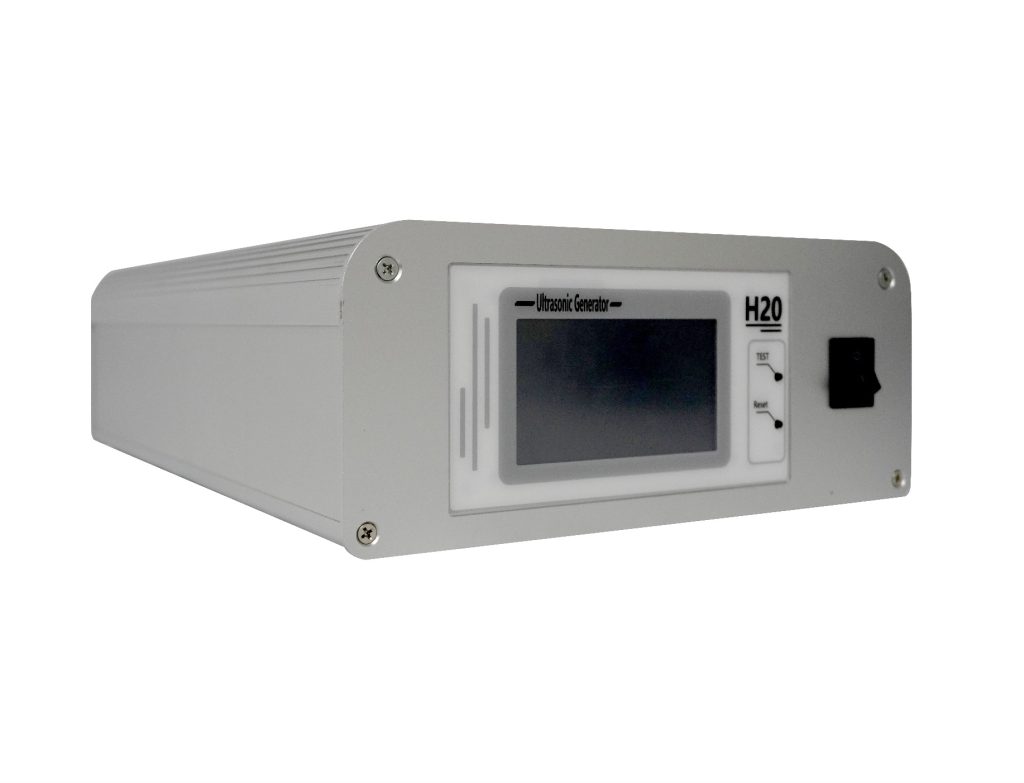

15kHz 4200W Ultrasonic Generator for Plastic Welding
H20-G Series 15kHz 4200W Ultrasonic Generator Specification The H20-G series ultrasonic generator is equipped with eight digital input channels, one 0-10V analog input/output channel, and one 485 communication channel. It has two “anti-misoperation” start buttons, one emergency stop button, one optical fiber input, two electromagnetic valve outputs, and a 5-inch high-definition touchscreen. This device is […]
Request a QuoteH20-G Series 15kHz 4200W Ultrasonic Generator Specification
The H20-G series ultrasonic generator is equipped with eight digital input channels, one 0-10V analog input/output channel, and one 485 communication channel. It has two “anti-misoperation” start buttons, one emergency stop button, one optical fiber input, two electromagnetic valve outputs, and a 5-inch high-definition touchscreen. This device is classified as a high-power ultrasonic generator, with a maximum power of 4200W. It is widely used for label cutting, food slicing, plastic welding, plastic embedding, non-woven fabric welding, and cutting.
[caption id="attachment_1873" align="alignnone" width="1024"]
15kHz 4200W Ultrasonic Generator Dimension for Plastic Welding[/caption]
|
Dimensions (cm) |
Weight (kg) | Input Voltage AC |
| 42*28*12 | 7.62 |
220v 50Hz |
|
Transducer Frequency and Power Frequency：15KHz |
|||
|
Power (output) |
2600w |
3200w |
4200w |
| Match | 9nf ±10% | 16nf ±10% |
20nf ±10% |
|
Transducer Frequency and Power Frequency：15KHz |
|||
|
Power (output) |
2600w | 3200w |
4200w |
| Match | 9nf ±10% | 16nf ±10% |
20nf ±10% |
|
Transducer Frequency and Power |
|
35KHz ~40KHz |
|
1200w |
Characters:
The H20-G series ultrasonic generator comes with built-in delay time, ultrasonic time, and hold time controls, eliminating the need for additional time control devices. It features two modes—time mode and energy mode—for customers to choose from freely. For demanding applications, the self-calibration function can be activated to reset the ultrasonic system. It also includes dual electromagnetic valve control, allowing simultaneous control of fixtures and cylinders.
Advantages:
Powerful functionality, excellent quality;
High welding stability and large power;
Digital circuit system;
Real-time automatic frequency tracking/locking with precise parameter adjustment;
Easy to operate and practical to use;
Fast welding and high frequency;
Strong performance and long-lasting durability.
Application:
Ultrasonic welding is widely used in various industries, including the acoustics industry, electronics and electrical appliances industry, medical industry, consumables industry, packaging industry, automotive parts industry, webbing industry, sanitary ware industry, toy industry, instrumentation industry, and more.
